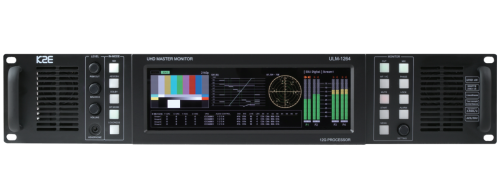

ULM-1264

UHD MASTER MONITOR

Video Analyzing

Embedded audio Signal

Variety Monitorng Mode

FEATURES

12g-sdi

Standard Signal

monitor

Monitoring Video,Audio

LOUDNESS

maximum 72ch

LVL METER

check error from each stream

BLOCK DIAGRAM

VIDEO SCREEN
VIDEO VECTOR SCOPE
LOUDNESS MOMENTARY
12G-SDI ERROR CHECK

VIDEO SCREEN
AUDIO 16CH LEVEL METER
LOUDNESS MOMENTARY
LOUDNESS SHORT TERM

AUDIO WAVEFORM
LOUDNESS MOMENTARY
LOUDNESS SHORT TERM
AUDIO VECTOR SCOPE

AUDIO WAVEFORM
LOUDNESS MOMENTARY
LOUDNESS SHORT TERM
LOUDNESS STATUS

VIDEO SCREEN
VIDEO WAVEFORM
VIDEO VECTOR SCOPE
AUDIO LEVEL METER
SD STREAM ERROR CHECK

VIDEO SCREEN
AUDIO LEVEL METER
AUDIO VECTOR SCOPE

Previous

Next

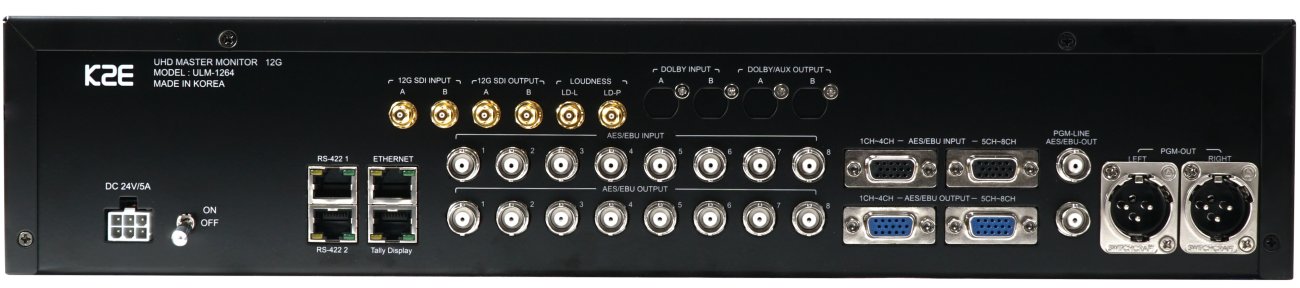

ULM-1264

Specification

Number of SDI Input

SDI Input 2ch

Equlaization

85m at 11.88Gb/s, 200m at 2.97Gb/s, 250m at 1.485Gb/s
(Typical maximum equalized length of 5C Cable)

standard

12G, 3G, HD-SDI, ST-2082-10, SMPTE242M, SMPTE425M (Level-A, Level-B)

sdi ouput

SDI Output 2ch

NUMBER OF AES/EBU input/Output

AES/EBU Output (75Ω) : 8ch
AES/EBU Input (75Ω) : 8ch
AES/EBU Output (110Ω) : 8ch
AES/EBU Output (110Ω) : 8ch

NUMBER OF OUTPUT SAMPLING RATE

32kHz to 96kHz Asychronous, 48kHz Synchronous ( SRC = Off )

STANDARD

AES-1992 for balanced synchronous or asynchronous PCM/AES
SMPTE 276M for single ended synchronous or asynchronous PCM/AES

download catalog

reference input & loop

Input 1 & Loop, Input 2 & Loop

HD Sync (Tri-level)

SMPTE274M, SMPTE296M, 600mVp-p nominal, 75ohm terminated through loop

pgm line out

2ch AES/EBU (75Ω)

RS-422 & ETHERENT

3 Ports RS-422, 1 Port Etherent

LTC INPUT

1ch LTC Input

OTHERS

Dimension : 484(W) x 88(H) x 246(D)mm
Weight : 4Kg(8lbs)
Power : DC 24V
