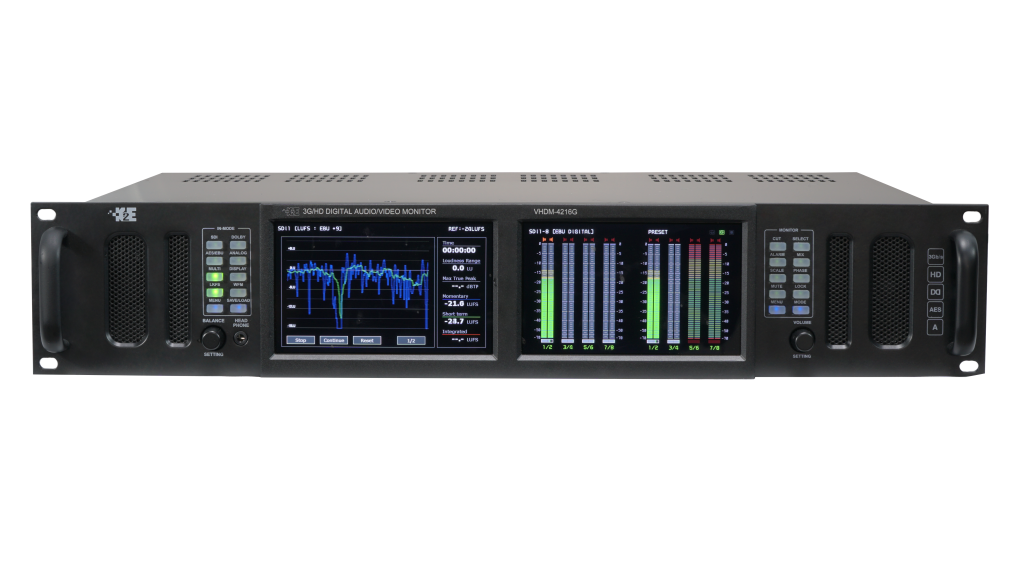

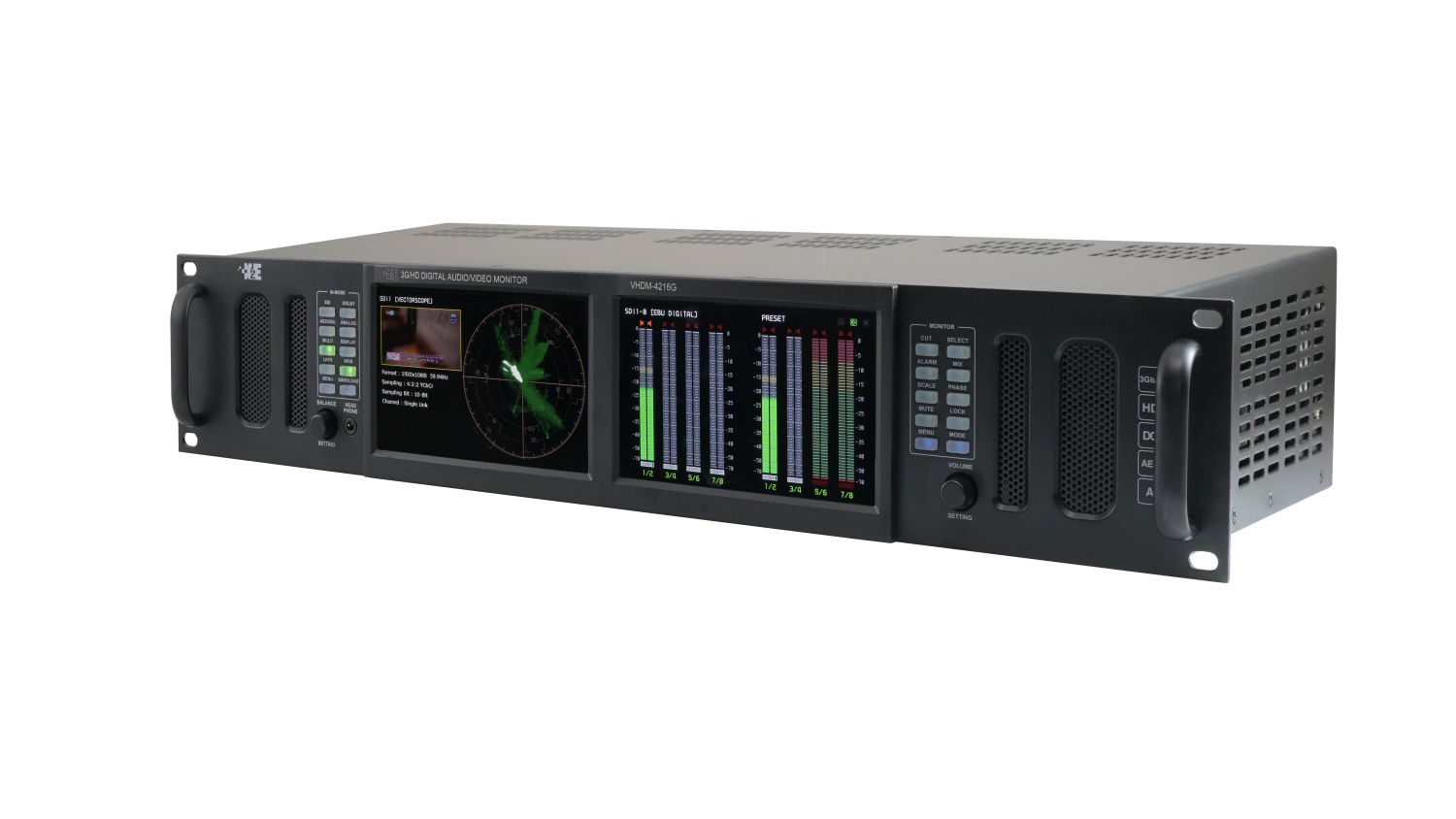

VHDM-4216G
HD MULTIFORMAT AUDIO MONITOR
Video Analyzing
Embedded audio Signal
Variety Monitorng Mode
FEATURES
3g-sdi
Standard Signal
monitor
Monitoring Video,Audio
dolby
Check Dolby signal (option)
LVL METER
Check error from each stream
BLOCK DIAGRAM
VHDM-4216G
Specification
-
Number of SDI Input
3G,HD/SDI Input 2ch
-
equalization
85m at 11.88Gb/s, 200m at 2.97Gb/s, 250m at 1.485Gb/s
(Typical maximum equalized length of 5C Cable) -
standard
3G, HD-SDI, ST-2082-10, SMPTE242M, SMPTE425M (Level-A, Level-B)
-
sdi ouput
3G/HD-SDI Output 2ch
-
NUMBER OF AES/EBU input/Output
AES/EBU Output (75Ω) : 8ch
AES/EBU Input (75Ω) : 8ch
AES/EBU Output (110Ω) : 8ch
AES/EBU Output (110Ω) : 8ch -
NUMBER OF OUTPUT SAMPLING RATE
32kHz to 96kHz Asychronous, 48kHz Synchronous ( SRC = Off )
-
STANDARD
AES-1992 for balanced synchronous or asynchronous PCM/AES
SMPTE 276M for single ended synchronous or asynchronous PCM/AES
-
reference input & loop
Input 1 & Loop, Input 2 & Loop
-
Analog audio output
Balanced analog audio Input : 8ch
Balanced analog audio Output : 8ch -
HD Sync (Tri-level)
SMPTE274M, SMPTE296M, 600mVp-p nominal, 75ohm terminated through loop
-
pgm & monitor line out
2ch Balanced XLR
-
Ethernet
1 Port Etherent
-
OTHERS
Dimension : 484(W) x 88(H) x 313(D)mm
Weight : 5.9Kg(8lbs)
Power : DC 24V
