Cross Converter

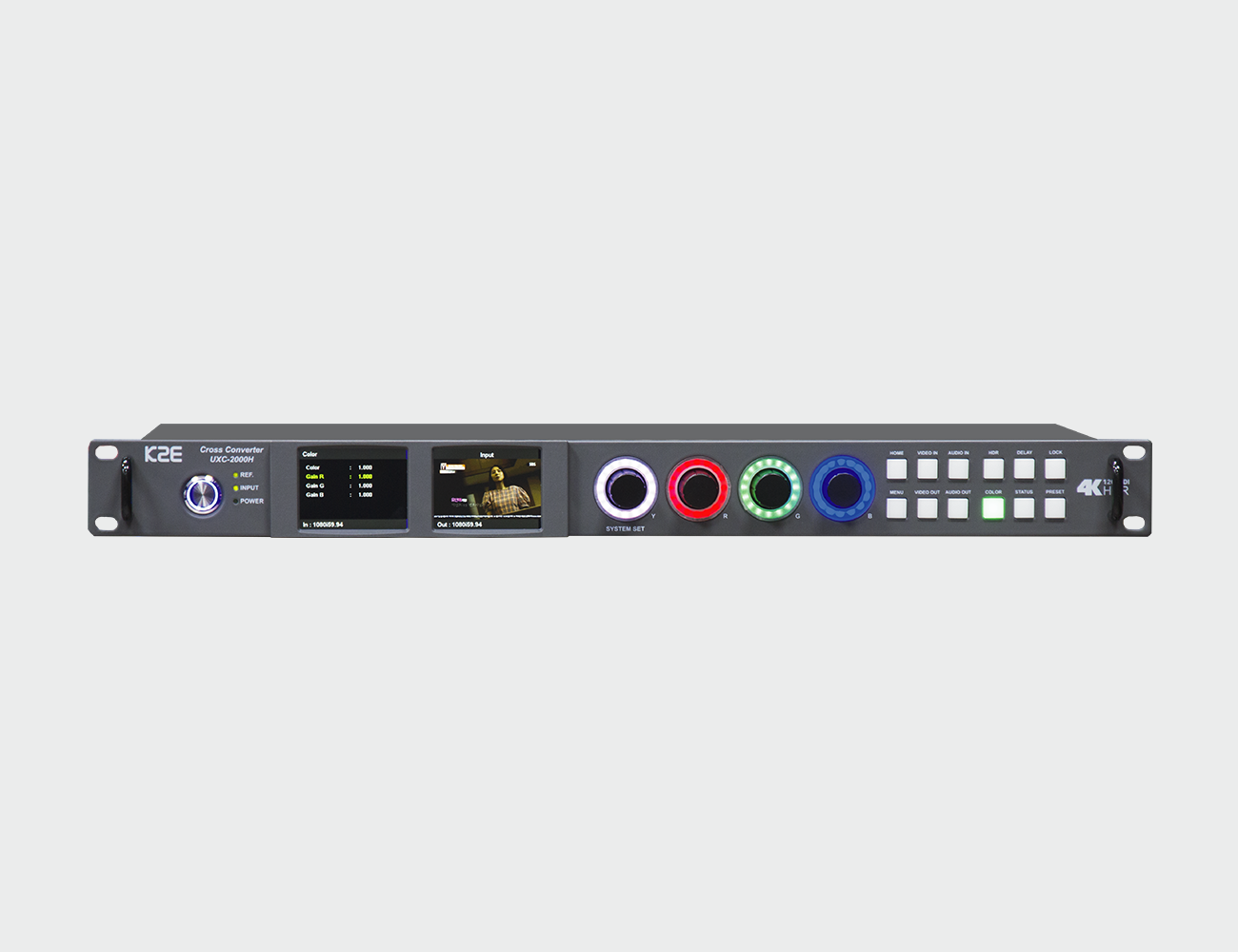

UHD CROSS CONVERTER

Best Specification

Easy to Use

Comfortable Design

Powerful Interaction
2.5 Inch Dual Screen

features

12g-sdi

Standard Signal

hdmi

Monitoring Output

sfp

Variety format

hdr

True Color

Up&Down convert

UP&Down conversion (12G-SDI to 3G/HD-SDI, 3G/HD-SDI to 12G-SDI) and gear box, video pattern generator, and Audio Tone generator function.

hdr

R,G,B Color corrector control, Color correct control.

aes/ebu

Leverage agile frameworks to provide a robust synopsis for high level overviews iterative approaches

BLOCK DIAGRAM

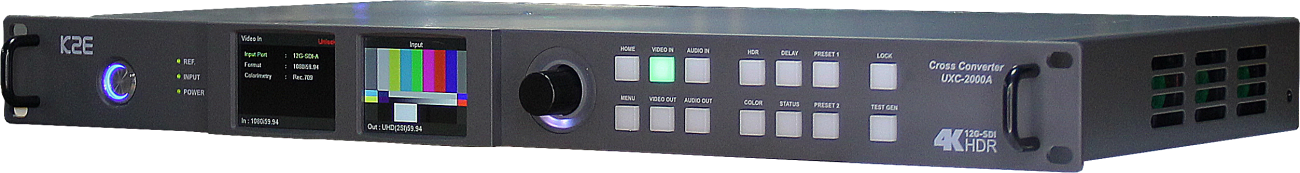

UXC-2000A

Specification

  • Number of SDI Input

    12G-SDI 2ch, 3G/HD-SDI 4ch

  • Number of hdmi iNPUT

    HDMI In 1ch

  • Number of SDI OUTPUT

    12G-SDI 2ch, 3G/HD-SDI 5ch, HD-SDI(Only) 2ch

  • AES/EBU 110Ω INPUT / OUTPUT

    AES/EBU Input 8ch, AES/EBU Output 8ch

  • Reference & Loop

    Reference Output 1port, Loop 1port

  • RS-422 & ETHERNET

    RS-422 2ports, Ethernet 1port

-

  • input select

    12G-SDI/ 3G,HD-SDI A,B,C,D / Quad / 2SI / Optic

  • HDR In / oUT

    Auto, BT,709, BT.2020, PQ10, HLG10

  • COLOR

    SD-nit, Gamma, RGB, Contrast, Brightness, Color

  • VIDEO

    Output Select : Disable, Moire, R219, SMPTE-EG1, 75% Color, Multibust, Ramp, Outline
    Speed Select : Slow, Normal, Fast

  • AUDIO OUTPUT

    Audio Source Select : SDI, AES/EBU, Tone Generator
    Tone Generator : MUTE, 500Hz, 750HZ, 1KHz, 1.5KHz

  • OTHERS

    Dimension : 484(W) x 44(H) x 240(D)mm
    Weight : 4.85Kg(10.7lbs)
    Power : AC100V-AC240V, 3A
