MASTER SWITCHER

12G-SDI 16×4 Clean Master Switcher

12G-SDI Dual Channel Monitoring

Loudness Setting

PGM PVW Audio Control

Loudness Monitoring

Dual Power Supply

Loudness Control

HDR(HLG10, PQ10, SDR) control

PGM PVW Video Audio Analyzer

4k uhd master switcher

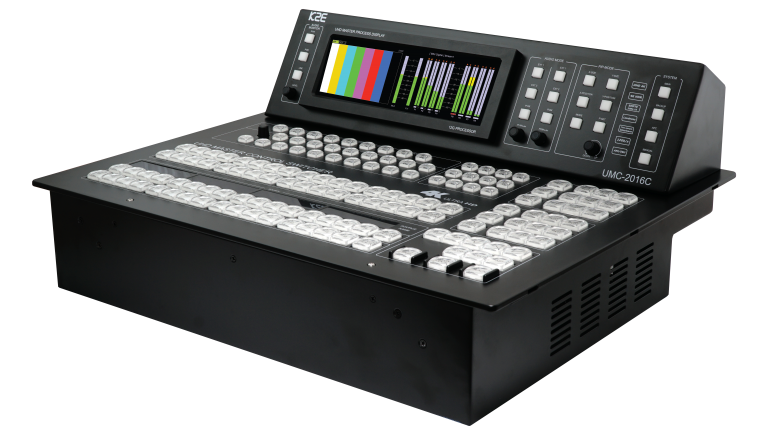

K2E Master Switcher have 2 parts of Main (UMC-2016M) and Controller (UMC-2016C / HEC-1604). UMC-2016 is a 4K Clean Switcher that switches PGM and PVW outputs. Video Process displays the Signal Information, Waveform, CIE Chromaticity Diagram, and Audio Level Meter of the input signal using HDR.

specification

12g-sdi

Standard Signal

AES/EBU

Monitoring Output

GPI/O

32 GPIO port

hdr

Live Change

Loudness Control

hdr

clean switching

Block Diagram

UMC-2016M (UHD Master Switcher) is designed for Live broadcaster. Builted as modular system it can be fit into Frame individually and has 16ch 12G-SDI inputs, 9ch 12G-SDI outputs, Program 2ch, Preview 2ch, Clean 2ch, Line 2ch, Aux 1ch.

16ch Frame synchronizer and reference error free (REF) which means Keep the output SDI signal stable from
the instant input reference loses.

Audio Level can be controlled by PVW & PGM in real time ( STEREO, MONO selct / AUDIO LEVEL / PHASE / Volume Control )

UMC-2016M

Specification

  • Number of SDI Input

    SDI 16ch

  • equalization

    85m at 11.88Gb/s, 200m at 2.97Gb/s, 250m at 1.485Gb/s
    (Typical maximum equalized length of 5C Cable)

  • standard

    12G, 3G, HD-SDI, ST-2082-10, SMPTE242M, SMPTE425M (Level-A, Level-B)

  • sdi ouput

    UMC-2016C : PGM 2ch, PVW 2ch, Claen 2ch, AUX 1ch, AES/EBU 2CH, Line 2ch, DSK 3ch (Optional 6ch)
    HEC-1604 : PGM 2ch, PVW 2ch, Clean 2ch, AUX 1ch, DSK 3ch

  • NUMBER OF AES/EBU Output

    2ch (75Ω)

  • NUMBER OF OUTPUT SAMPLING RATE

    32kHz to 96kHz Asychronous, 48kHz Synchronous ( SRC = Off )

  • STANDARD

    AES-1992 for balanced synchronous or asynchronous PCM/AES SMPTE 276M for single ended synchronous or asynchronous PCM/AES

UMC-2016C

Specification

  • Number of SDI Input / OUTPUT

    12G-SDI : Monitoring input 1ch & Loop output 1ch
    3G-SDI : Loudness 1ch, PGM 1ch, PVW 1ch, AUX 1ch

  • STANDARD Equalization

    12G, 3G,-SDI SMPTE ST-2082-10, SMPTE 424M ( Level-A, Level-B)
    85m at 11.88Gb/s, 200m at 2.97Gb/s, 250m at 1.485Gb/s
    (Typical maximum equalized length of 5C Cable)

  • RS-422 & ETHERNET

    RS-422 3ch, 100/10 Ethernet 1ch
    Data Format : 9600-115200 baud rate
    Connector : RJ-45

HEC-1604

Specification

  • RS-422 & ETHERNET

    RS-422 1ch, 100/10 Ethernet 1ch & Loop out
    Data Format : 9600-115200 baud rate
    Connector : RJ-45

  • GPI/O

    GPIO editable 16ch, Logo 3ch, DSK 3ch control pin

  • VFD-PANEL

    5 Different monitoring mode
